Description

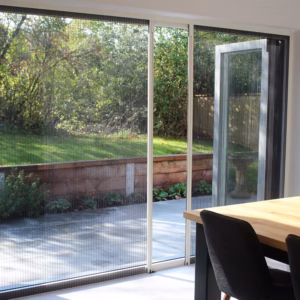

A Double Pleated Mesh Door is a retractable mosquito protection door designed for wide door openings such as balconies, patios, and large entrances. It uses two pleated mesh panels that slide from both sides toward the center, forming a complete insect barrier while allowing ventilation and visibility.

This system uses accordion-style pleated mesh, which folds compactly when opened and expands when closed, making it ideal for large openings where a single mesh door is not sufficient.

What is a Double Pleated Mesh Door?

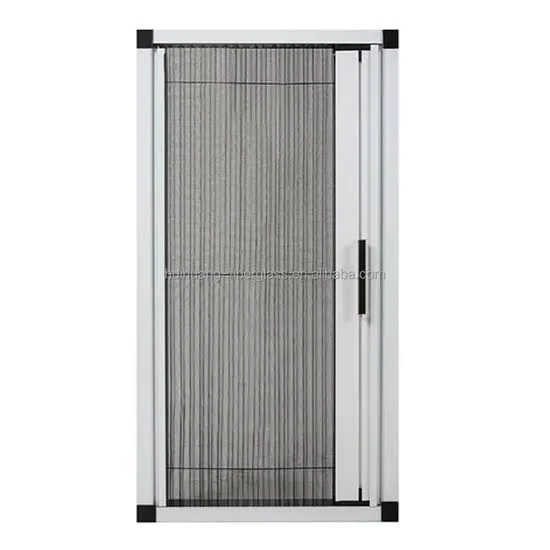

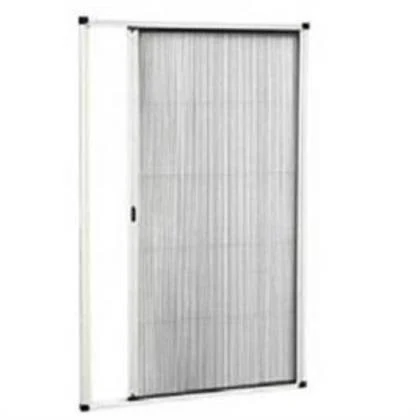

A double pleated mesh door consists of:

• Two pleated mesh panels

• Aluminium frame

• Top and bottom sliding tracks

• Central magnetic or latch locking system

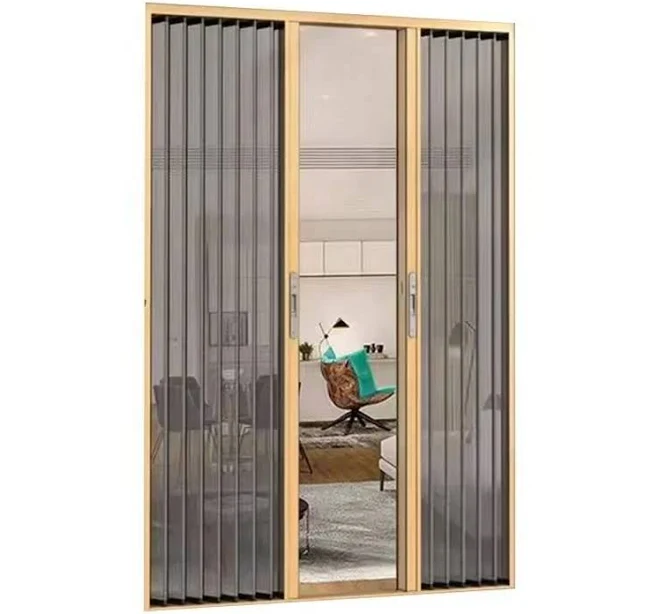

Both mesh panels slide from left and right sides and meet in the center to close the opening. When opened, the mesh folds neatly into the side frames.

This design is particularly useful for extra-wide doors, where a single sliding panel may not cover the full width.

---

How the Double Pleated Mesh System Works

1. Aluminium Frame Installation
   The aluminium frame is mounted around the door opening.

2. Pleated Mesh Panels
   Two pleated mesh panels are installed on both sides.

3. Sliding Track Mechanism
   The panels slide horizontally along top and bottom tracks.

4. Central Closing System
   Both panels meet in the center and lock magnetically.

5. Compact Folding
   When opened, the pleated mesh folds into the side housing.

---

Main Components

1. Aluminium Frame

• Powder-coated aluminium profiles

• Strong and corrosion-resistant

2. Pleated Mesh

Common materials include:

• Polyester pleated mesh

• Fiberglass pleated mesh

• Stainless steel pleated mesh (premium)

3. Sliding Track System

• Aluminium top and bottom tracks

• Smooth sliding operation

4. Handle & Lock

• Magnetic center lock

• Sliding handle for easy operation

---

Key Features

Ideal for Large Openings

Covers wide balcony or patio doors.

Space Saving Design

Pleated mesh folds compactly when opened.

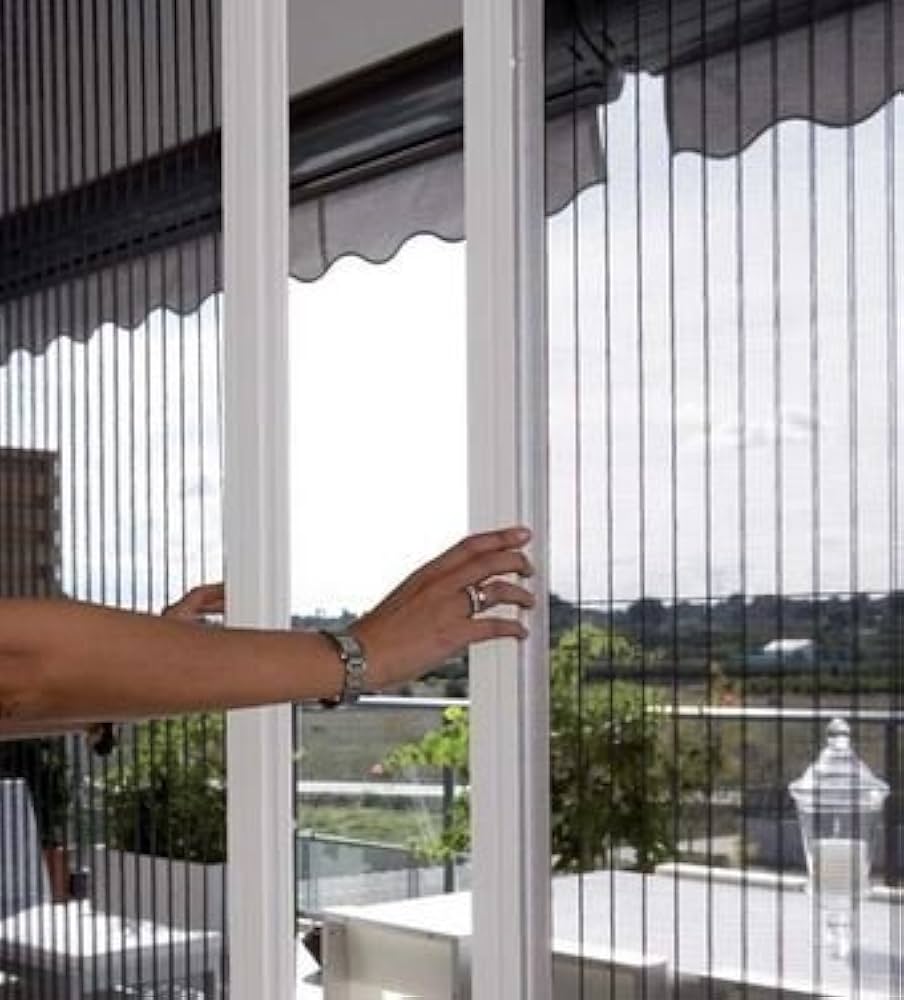

Smooth Sliding Operation

Panels slide easily along tracks.

Elegant Modern Appearance

Minimal frame and sleek pleated mesh design.

Effective Mosquito Protection

Blocks mosquitoes, flies, and insects.

---

Typical Specifications

---

Advantages

• Suitable for large entrances

• Modern and premium design

• Smooth sliding mechanism

• Durable aluminium structure

• Excellent ventilation
